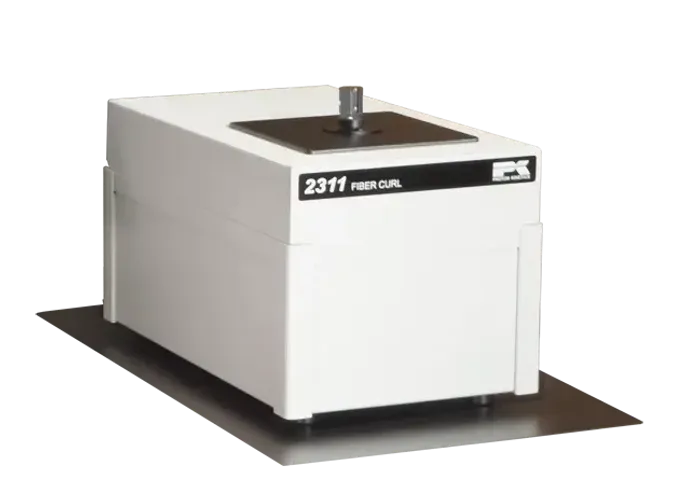

2311 Fiber Curl System
Next generation, stand-alone or add-on curl measurement capability
- Post-draw
- Final Quality Control
- Multicore
Full Description
The 2311 Fiber Curl System/Option is Photon Kinetics' measurement system for fiber curl and a member of the PKSL product family. The 2311 is deployable either as an add-on option for the 2300 Fiber Analysis System to create a comprehensive fiber geometry final QC test station, or as a stand-alone curl measurement system for spot checks in the fiber draw area.
Capabilities
Fiber Curl
Request a Quote
Features
Rapid, repeatable measurements
-
Increases production output, reduces cost
-
Ensures useful process feedback and finished product quality
Easy-to-use, touch screen interface
-
Reduces operator fatigue, minimizes training time and expense
PKSL Software Application/Test Wizard
-
Provides menu guided creation of typical test parameters
-
Enables easy customization/automation of tests via script editing
-
Simplifies translation of test menus/instructions into local language
Customized optical configurations
-
Deployable as add-on option to 2300 Fiber Analysis System or as stand-alone system
Key Specs
Curl Measurement Range
Scroll to view more specs
Specification
1.0 - 100 m
Repeatability
Scroll to view more specs
Specification
< 1.0%
Reproducibility
Scroll to view more specs
Specification
< 2.5%
Measurement Time
Scroll to view more specs
Specification
< 15 seconds
Compatible Fiber Types
Scroll to view more specs
Specification
All 125 µm nominal cladding diameter fibers
| Specification | |
|---|---|
| Curl Measurement Range | 1.0 - 100 m |
| Repeatability | < 1.0% |
| Reproducibility | < 2.5% |
| Measurement Time | < 15 seconds |
| Compatible Fiber Types | All 125 µm nominal cladding diameter fibers |
